Product Details
Country of Origin
India

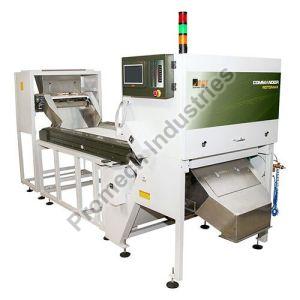

- Chilli Color Sorter
- High Speed HD camera, Ultra HD imaging & analysis technology, high-speed processing, Accurate Identification.
- Intelligent image processing.
- AI-Deep learning technology.
- Intelligent study data classification.
- 5400 x 3 pixel RGB sensor.
- Image can taken 122 million pixels per second, Easy to use interface.
- High level AI deep learning technology, user friendly interface, easy operation.
- Multi-function, Multi-purpose, widely used for all kind of rice, grain, nuts, plastics etc.
- High and specification ensure high stability with high sorting accuracy.
- Even light system, 1.2 Billion life cycle.
- Accurate dimming control valve.
- High speed matrix valve, Maintenance free SMPS.
- Mark brand full HD colorful 10.1 touch screen.
- Customer friendly user interface. Linux based operating systems.
- Powerful communication system feeder.
- Closed loop sensor based feeder systems self calibration. Material even feeding system LED.
- Micro controlled LED high reliability and long lifespan LED light resources smart cooling.
- 16 Million colors RGB background LED realtime background color adjustmentable.
- Combined with color sorting, AI sorting sort difficult impurities like micro color difference.
- FPGAs based best-in-class signal processing capabilities for high bandwidth applications, Built on the 28nm HPL Processor! HD lens for clear imaging HM.
Technical Specifications
| Chute Option Available | 12 Chute | 10 Chute | 8 Chute | 7 Chute | 6 Chute | 5 Chute | 4 Chute | 3 Chute | 2 Chute | 1 Chute |
| Chute Distribution (P+S+F) | 7+3+2or7+2+2+1 | 6+2+2or 6+2+1+1 | 5+2+1 or 4+2+1+1) | 4+2+1 or 4+2+(40+21) | 4+1+1 or 4+2+(40+21) | 3+1+1 or 3+1+(40+21) | 2+1+1 or 2+1+(40+21) | 2+1 or 2+(40+21) | 1+1 or 1+(40+21) | - |
| Output (TPH) for Rice/Dal | 7 to 9 | 6 to 8 | 5 to 7 | 4 to 6 | 3.5 to 4.5 | 3 to 5 | 2 to 4 | 1.5 to 2.5 | 1 to 2 | 0.75 to 1.5 |
| No.of.camera (F&R) | 12+12 | 10+10 | 8+8 | 7+7 | 6+6 | 5+5 | 4+4 | 3+3 | 2+2 | 1+1 |
| Air@7.5kg/Cm2 | 230 CFM | 180 CFM | 160 CFM | 140 CFM | 115 CFM | 96 CFM | 72 CFM | 54 CFM | 44 CFM | 28 CFM |
| Compressor Requirement | 50 HP Screw | 40 HP Screw | 35 HP Screw | 35 HP Screw | 30 HP Screw | 25 HP Screw | 20 HP Screw | 15 HP Screw | 10 HP Screw | 10 HP Screw |
| Dimension (LXWXH) feet | 16x4.88x5.97 | 13.83x4.88x5.97 | 10.87x4.88x5.97 | 9.73x4.88x5.97 | 8.59x4.88x5.97 | 7.46x4.88x5.97 | 6.33x4.88x5.97 | 5.19x4.88x5.97 | 4.1x4.88x5.97 | 2.92x4.88x5.97 |
| Cabin Dimension Feet (LXWXH) | 20x10x8 | 18x10x8 | 16x10x8 | 14x10x8 | 13x10x8 | 12x10x8 | 10x10x8 | 9x10x8 | 8x10x8 | 7x10x8 |
